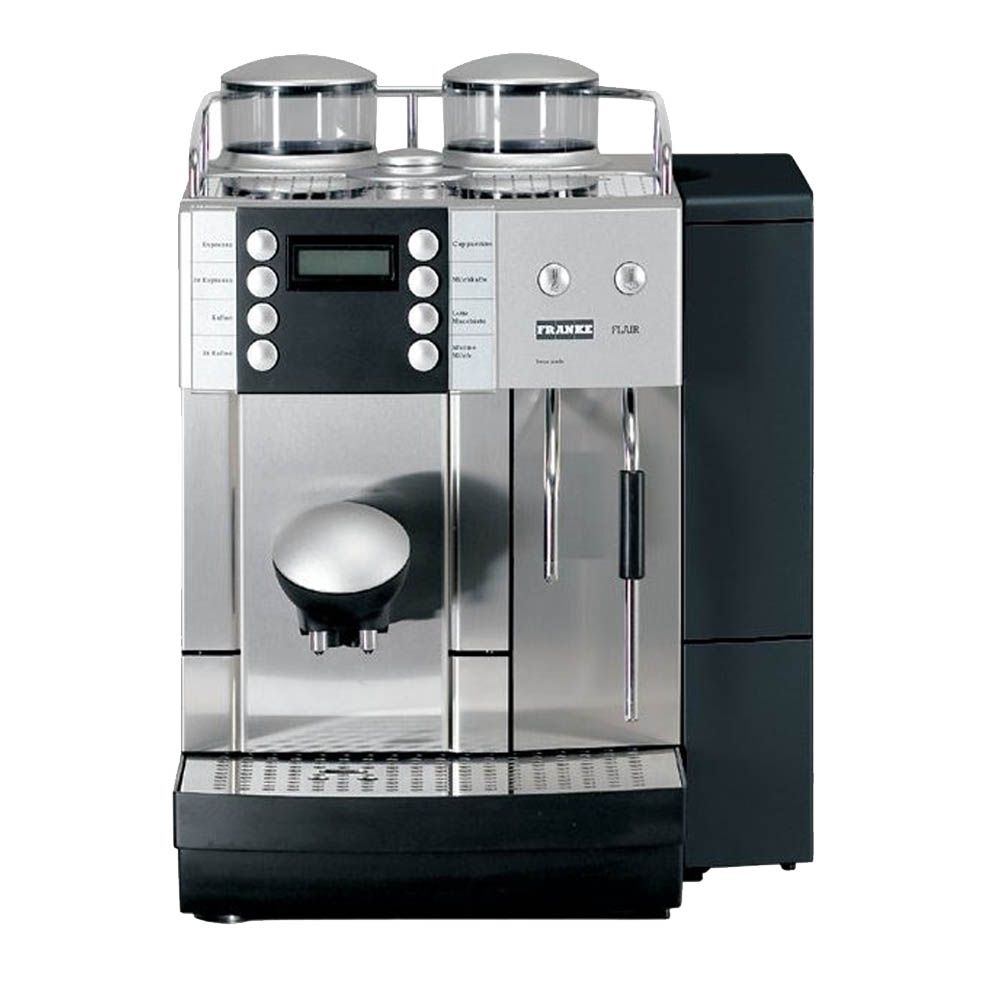

Quick Start Manual Franke Flair

Getting Started
  1. Fill the water tank with mineral water or by lifting the tank up and fill it under the tap.

  2. Fill the beanholders on top with beans (both need to be filled). One is for espresso, the other is for coffee (same beans, different grinding).

  3. Fill the milk container: Put 1 ltr of cold milk in the glass bottle and insert the two tubes from the left side of the coffee machine in the milk. Don't forget to power on the fridge.

  4. Starting the machine: Insert the plug and switch the main switch on at the back of the machine. Gently lift the display from top to bottom and press the powerbutton till the display comes on. The boiler is warming up now.

  5. After warming up: The machine will ask you to rinse the machine ("Apparaat spoelen"). Press the Rinse button (the one with the waterdrops) next to the powerbutton, we don't use any of the other buttons. Close the panel when finished, you can now make yourself a nice cup of coffee!

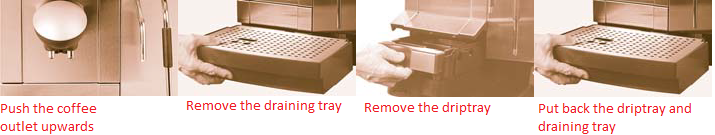

How do i empty the driptray and the coffee ground container?
  1. Gentle push the coffee output up.

  2. Remove the drainingtray by pulling it towards you. When you empty it, make sure you hold the leakgrid so it doesn't fall of (or remove it).

  3. Gently pull the container towards you, if it's not opening smoothly, please check if the coffee outlet is pushed up!

  4. Insert the container back in the machine, after that you can insert the drainingtray.


At the end of the day:
  1. Remove the tubes from the milk and put it in a cup of water.

  2. Make a Latte, so the tubes are filled with water overnight.

  3. Clean milk container and/or put the milk in the fridge.
  4. Turn off the machine by pushing the power button on the front side behind the display.

  5. Empty the driptray and the container.
